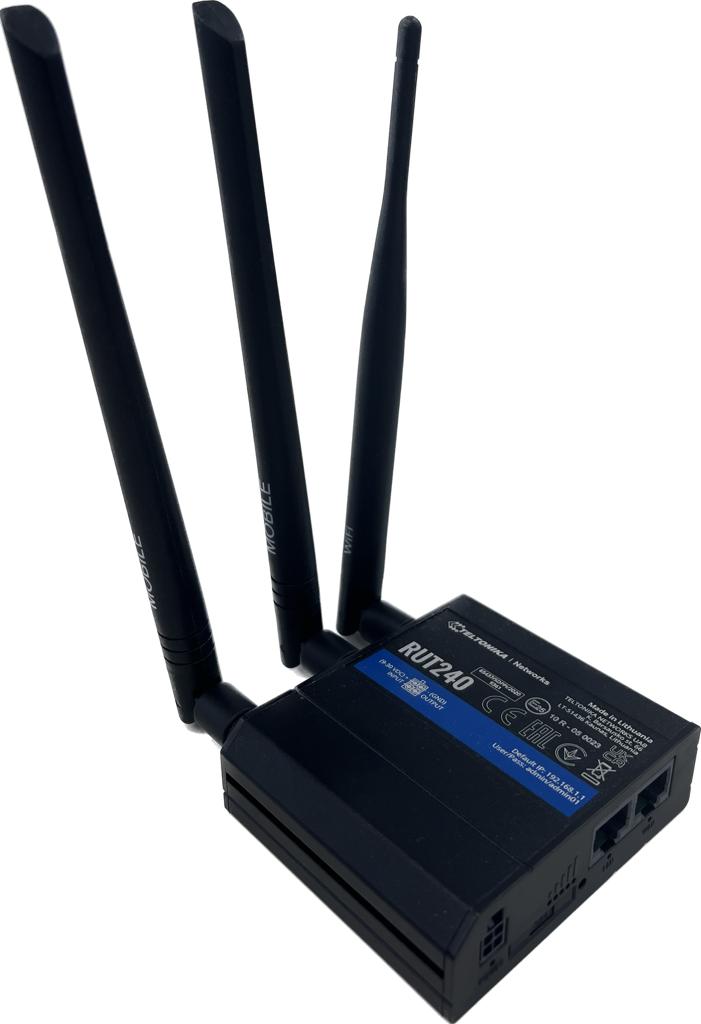

You can add a 3G router as an accessory in your kiconex order to solve your Internet access problems and which offers the following connectivity options:
To access the router configuration portal, you can connect your computer to the LAN port and type the IP 192.168.0.1:8080 in your web browser.
== Router web portal == When accessing, the router displays the page with a general operating status:
Router status page
In the menu on the left, you have 3 options:
STATUS: displays a menu with the status of the different router tools
NETWORK: the options in this menu allow you to change the router's network configuration
SYSTEM: from here you can change the user password or reboot the router.
In the following sections, you can see how to make a network configuration on the router.
Network configuration
Factory defaults
When you receive a router prepared for use in a kiconex network, the default configuration is:
Priority use of SIM to connect to internet
Use of WAN port to get internet, in case no SIM is used or no coverage
WiFi network with open with the following configuration:
SSID: kiconex
Password: KiconexWiFi
LAN network to connect clients via ethernet cable, in the IP range 192.168.0.0
User access to the web portal:
User: kiconex
Password: 00#Kiconex
Connecting the router as a client of a WiFi network
The router allows you to connect as a client of a WiFi network to obtain Internet. The procedure is as follows:
Click on NETWORK>WIRELESS: WiFi network menu
Click to 'disable' the existing WiFi network and click on the SCAN option:
Disable WiFi network AP to scan for other nearby WiFi networks
Click "JOIN NETWORK" on WiFi network you want to connect to:
Scan result for WiFi networks. Select the desired one from Join Network

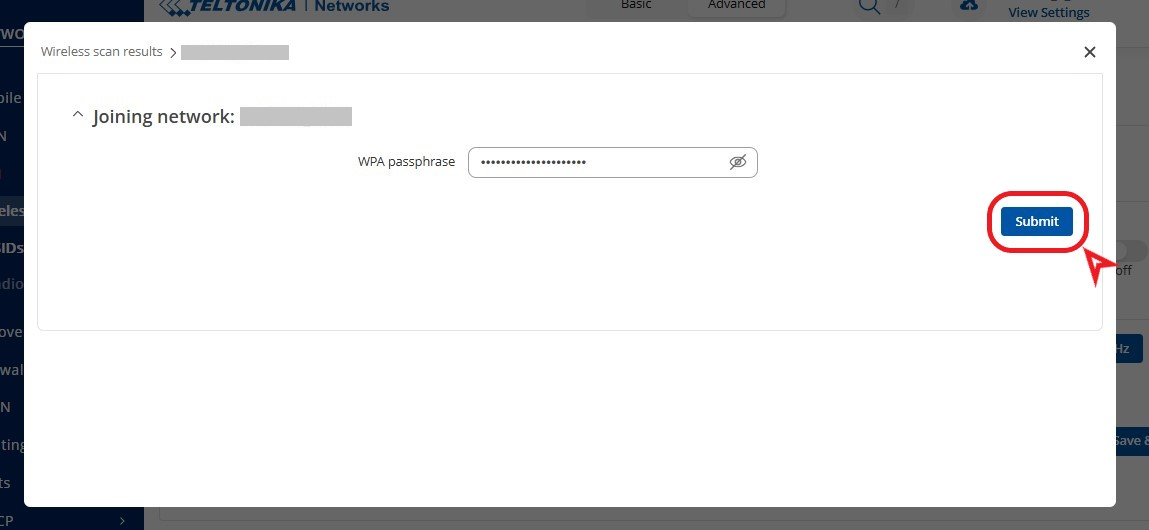

Enter the password for the WiFi network and set a name for the network interface to be created: Password and name for WiFi network to which you connect as a client * Confirm the settings by clicking "SAVE & APPLY":
Confirm WiFi settings set
You will be able to see the new network running from the NETWORK>INTERFACES: menu Router connected as a client to a WiFi network
Crear una red WiFi
Puede crear una red WiFi siguiendo los siguientes pasos:
Click on NETWORK>WIRELESS': WiFi network menu
Click to enable the existing WiFi network and click on the configurationsymbol: Enable WiFi network
Configure the desired SSID in the GENERAL SETUP section:
WiFi SSID
Set the desired encryption and password in the "WIRELESS SECURITY" section:
WiFi password
Click SAVE & APPLY to save the configuration.
Click SAVE & APPLY to confirm the wireless configuration:
Confirm wireless configuration
Changing the mobile APN configuration
To change the APN associated to your mobile provider's SIM, you can do so by configuring the interface corresponding to the 3G network, MOB1S1A1A1:
Access button to edit mobile network interfaceAPN address configuration
Configure WAN port as LAN
The router's WAN port can be configured as a second LAN port. To do this, we must take into account the firmware version of our kibox. If it has version 07.05.4 or higher, we will carry out a process. If it has a version older than this, we will have to go through a different process.
Version 07.05.4 or higher
We make sure that we are in the basic mode of the interface by looking at the top of it:
Navigate to the Network> LAN section and edit the LAN record:
In the registry editing window navigate to the Interfaces: lan section and find the `Use WAN port as LAN` option, change its value to `ON`:
Click "SAVE and APPLY" to save the settings:
Version prior to 07.05.4
Click on NETWORK>INTERFACES:
Disable the WAN and WAN6 options:
Apply change with "Save & apply":
Click on edit LAN:
Add "eth1" in the "Interface" field, within the physical' tab settings:
